Retrofit ultraFAIMS in 3 simple steps

Ion mobility offers orthogonal separation to both liquid chromatography and mass spectrometry. Find out how easy it is to add ion mobility to your existing instrument.

Published on: 19 Apr 2017, under FAIMS

ultraFAIMS ion mobility can be integrated with existing mass spectrometers

  • Interfaces are available for integration with Thermo Scientific mass spectrometers
Thermo Scientific Ion Max Source cone
Cone from a Thermo Scientific Ion Max Source

Adding ultraFAIMS is straightforward, to give you an idea of how simple it is to retrofit, see how ultraFAIMS is integrated onto a Thermo Scientific Orbitrap with an Ion Max Source:

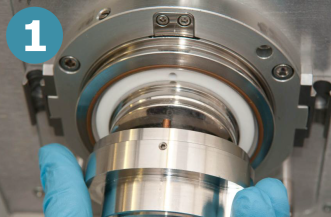

retrofit ultraFAIMS step 1
1. Fit ultraFAIMS cone over the spray cone on the MS inlet

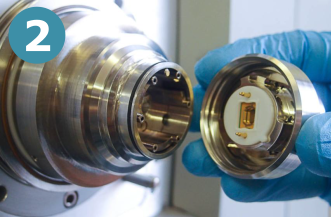

retrofit ultraFAIMS step 2
2. Fit the ultraFAIMS chip cap

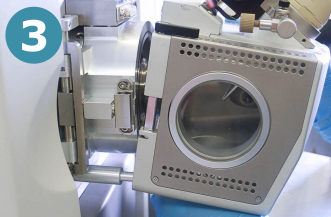

retrofit ultraFAIMS step 3
3. Re-mount ionization source on supplied adaptor ring

Add ultraFAIMS to your mass spectrometerultraFAIMS

Add ion mobility to existing mass spectrometers to provide in-source separation of ions

Retrofit to Thermo Scientific instruments
