LC-ultraFAIMS-MS can help detect up to 3x more features for ‘omics applications

Increasing Peak Capacity in Nontargeted Omics Applications by Combining Full Scan Field Asymmetric Waveform Ion Mobility Spectrometry (FAIMS) with Liquid Chromatography-Mass Spectrometry (LC-MS)

Kayleigh L. Arthur, Matthew A. Turner, James C. Reynolds and Colin S. Creaser

A study published by Arthur et al. in Analytical Chemistry1 has found that peak capacity can be improved in non-targeted ‘omics analyses by incorporating Owlstone Medical’s ultraFAIMS ion mobility device as an additional separation stage between liquid chromatography (LC) and mass spectrometry (MS) steps. The addition of ultraFAIMS increased the number of features detected threefold, compared to LC-MS alone (Figure 1).

LC-ultraFAIMS-MS detects 3 times more features than LC-MS alone

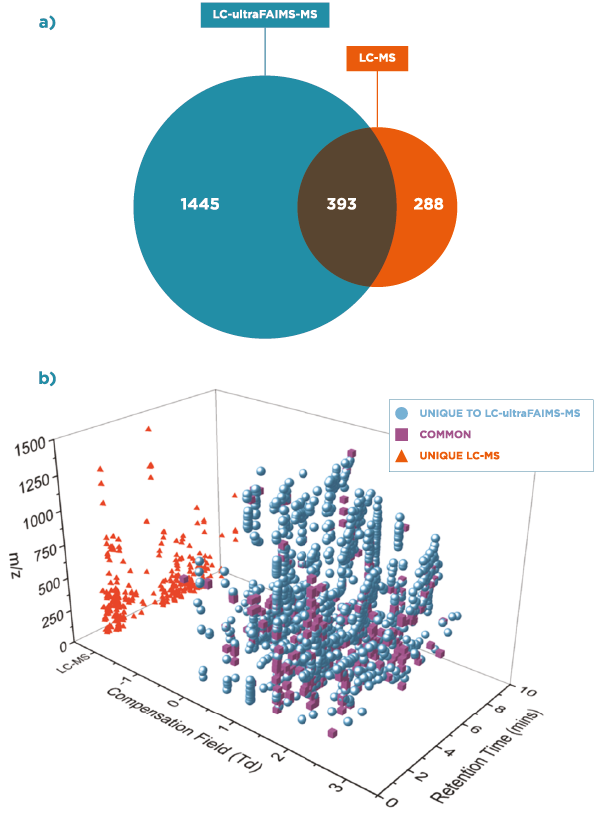

Figure 1. (a) The number of molecular features observed in a human urine sample using LC-ultraFAIMS-MS (blue) or LC-MS (red) and the features common to both methods (purple) as a Venn diagram. (b) A three-dimensional representation of the features observed in LC-ultraFAIMS-MS with unique features observed in LC-ultraFAIMS-MS (blue spheres) and LC-MS (red triangles) and the features common to both methods (purple cubes).

By increasing the number of identifiable analytes in complex biological samples, ultraFAIMS seeks to address one of the major challenges facing researchers undertaking non-targeted mass spectrometric analyses focused on metabolites, proteins, lipids or other sample components.

Approaches that use MS typically employ chromatographic techniques (e.g. LC) to improve separation between components of the sample. However, difficulty resolving analytes hidden by co-eluting isobaric species is common in non-targeted ‘omics studies. Detection is also often hampered by the presence of significant chemical noise.

Attempts to improve "peak capacity"; - the number of discrete analyte peaks that “fit” in a chromatogram - have included difficult sample preparation steps and lengthy chromatographic gradients. However, these approaches are often unsuccessful and can be unsuitable for non-targeted studies that aim to profile, for instance, a whole metabolome or proteome.

Improving peak capacity in ‘omics applications with ultraFAIMS

ultraFAIMS acts like a tuneable filter, helping resolve more features by reducing chemical noise and separating co-eluting isobaric species across the entire analytical space. This can increase selectivity and lowers the limit of detection (LOD), making more peaks ‘visible’ to the mass spectrometer, thus increasing peak capacity. Figure 1 shows that incorporating ultraFAIMS into the LC-MS workflow allowed many more features to be resolved in human urine.

How does ultraFAIMS work?

Field Asymmetric Ion Mobility Spectrometry (FAIMS) distinguishes ions according to differences in the speed that they move through a buffer gas under the influence of an asymmetric oscillating electric field.

As the mobility of the ions during the two parts of the waveform is rarely equal, there is usually a net drift towards one of the electrodes. In FAIMS, this net drift is corrected for by applying an additional DC voltage, known as the compensation field (CF), focussing specific ions through the device to the detector.

Unlike drift tube ion mobility spectrometry, FAIMS is orthogonal to both LC and MS because it is able to separate compounds that coelute from an LC column based on their differential mobility, which is not strongly related to their mass-to-charge ratio (m/z).

LC-ultraFAIMS-MS analysis of urine sample

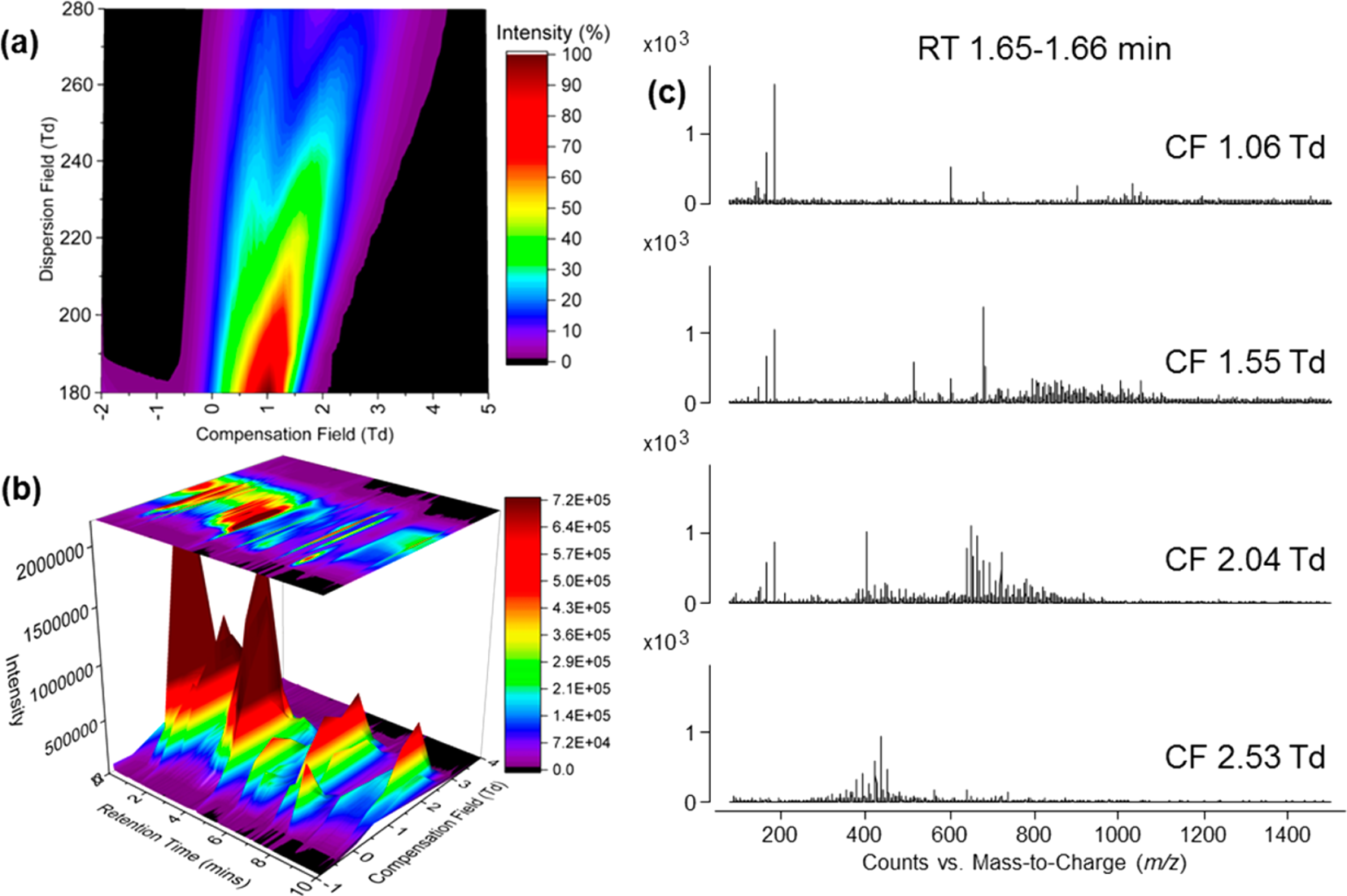

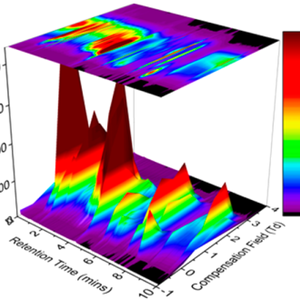

Figure 2. Electrospray ionization (ESI)-ultraFAIMS-MS analysis of a urine extract. (a) Direct infusion ESI-ultraFAIMS-MS heat plot of DF vs CF (with percentage intensity on the color scale); (b) three-dimensional plot with two-dimensional projection of retention time vs CF for LC-ultraFAIMS-MS; and (c) mass spectra extracted from LC-ultraFAIMS-MS data set at the same retention time and four different CF values.

ultraFAIMS enables ultra-fast separation compatible with standard UHPLC run times

Previous non-targeted ‘omics studies using macro-scale FAIMS instruments2,3 have been limited by the time it takes the FAIMS device to sweep through the complete range of possible CF voltages: macro-scale FAIMS systems are only capable of making a complete CF scan in around 3 seconds.

These slow scan speeds are incompatible with modern ultra high performance liquid chromatography (UHPLC) which produces narrow peak widths of 5 - 10 seconds. Incorporating macro-scale FAIMS systems into these workflows requires the use of limited CF scan ranges or very long LC run times. This results either in missing data or extremely time consuming analyses.

In contrast, the miniaturized ultraFAIMS device has extremely short ion residence times, so it can perform a full CF scan in ~1s. This makes ultraFAIMS compatible with UHPLC peak widths, and allows full LC-FAIMS-MS datasets to be collected using standard LC run times (~10 minutes) (Figure 3).

ultraFAIMS scan times are compatible with UHPLC

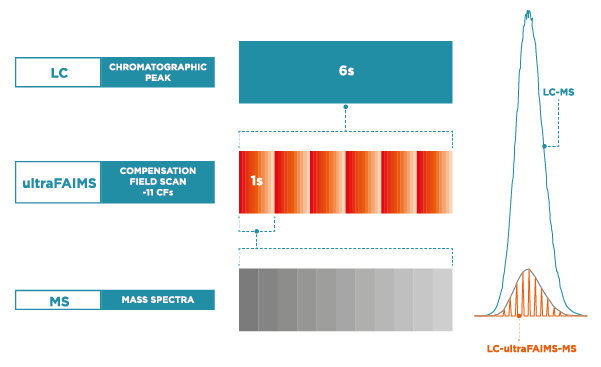

Figure 3 ultraFAIMS is able to scan across the full CF range in ~1 second making it compatible with UHPLC peak widths

The data from this study shows that ultraFAIMS could be a valuable addition to many ‘omics workflows that offers researchers the potential to detect up to three times more features in their samples, without changing their existing LC methods.

Adding ultraFAIMS to your 'omics workflow introduces a separation stage orthogonal to both LC and MS, offering you the chance to:

  • Detect upto 3x more features
  • Reduce chemical noise from complex samples
  • Improve signal-to-noise ratios
  • Increase sensitivity and dynamic range
  • Allow detection of previously hidden features by separation of isobaric interferences




  1. Increasing Peak Capacity in Nontargeted Omics Applications by Combining Full Scan Field Asymmetric Waveform Ion Mobility Spectrometry with Liquid Chromatography–Mass Spectrometry, Arthur, K.L. et al., Anal. Chem., 2017, 89, 3452–3459.
  2. Nontarget Analysis of Urine by Electrospray Ionization-High Field Asymmetric Waveform Ion Mobility-Tandem Mass Spectrometry, Beach, D. and Gabryelski, W., Anal. Chem. 2011, 83, 9107−9113.
  3. Linear and Nonlinear Regimes of Electrospray Signal Response in Analysis of Urine by Electrospray Ionization-High Field Asymmetric Waveform Ion Mobility Spectrometry-MS and Implications for Nontarget Quantification, Beach, D. and Gabryelski, W., Anal. Chem. 2013, 85, 2127−2134.
