4.2 Breath Biopsy EVOC™ Probe Research Kit

Monitor uptake, metabolism, and excretion of Exogenous VOCs (EVOC) in breath through our Breath Biopsy Services

  • Collect reliable non-invasive exhaled breath samples for research on liver function and other areas
  • Assess enzymatic activity by monitoring clearance of the EVOC probe from the system and the secretion of metabolic product(s) generated
  • Can administer a cocktail of EVOC probes to test multiple targets simultaneously
  • Send Breath Biopsy Cartridges to Owlstone Medical for targeted quantitative analysis and reporting
Request pricing

Overview

EVOC probes target biological pathways

An important advantage of Breath Biopsy is the ability to introduce chemicals (individually or a cocktail) that are not normally found on breath to a patient to explore how they are absorbed, metabolized, and excreted.

EVOC Man 2

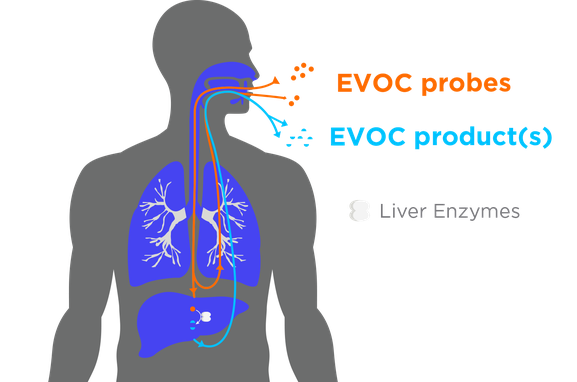

Figure 1. Administration and measurement of EVOC Probes and their metabolites

The power of this approach has driven the development of Owlstone Medical’s Exogenous VOC (EVOC) Probes, safe compounds that when administered are metabolized in the body and are excreted via breath. In this way, a clear readout of metabolism can be determined by measuring the levels of these chemicals and their metabolites.

EVOC™ Probes - Science and Technology

Learn More

Applications

EVOC Probes Applications

Owlstone Medical is focused on the development of EVOC probe-based Breath Biopsy applications to support of research taking place in academic, clinical and pharmaceutical settings. Our initial focus is on liver function and health, and drug metabolism testing where we are able to target specific enzymes in the liver (e.g. CYP450 family), however they also hold great potential in a wide range of additional applications. By building on understanding of biological pathways, specific metabolic targets can be identified and exploited to reveal the presence of disease.

Learn more about:

EVOC Probe Applications

Case Study

Terpenes: An Example of EVOC Probes

Terpenes are a large class of hydrocarbon compounds which are then acted upon by a range of enzymes. As an example of the use of EVOC Probes, an EVOC Probe (a capsule containing several terpenes) was administered and breath collected and analyzed over a period of 8 hours in a ‘washout study’. As shown in Figure 3, ingestion of the capsule resulted in a marked increase in concentration of terpenes in breath after 30 minutes, compared to baseline levels while no increase was observed for endogenous compounds not contained in the EVOC Probe, such as acetone and isoprene. Levels of terpenes then decrease over time, returning to baseline levels by 6 - 8 hours after capsule administration.

Peppermint Graph Capsule 900
Figure 3. Washout curves of acetone, isoprene, and different terpenes/terpenoids from one healthy subject at baseline (Ctrl) and after ingestion of the EVOC Probe. Washout curve following ingestion of a peppermint capsule. Breath samples from repeated collects from one individual over 8 hours (16 timepoints) were analyzed. Four replicate VOC sample tubes were collected and analyzed at each time point.

From the washout experiment, three time points were selected (pre-ingestion control, peak at 45 minutes and plateau at 3 hours) for inclusion in a longitudinal study where the washout experiment was repeated multiple times over 5 weeks. In the longitudinal study, fold changes for all compounds are presented for the peak and plateau time points, relative to the corresponding pre-ingestion control baseline (Figure 4). Breath metabolites acetone and isoprene show only small differences between peak and plateau fold change as expected, however large fold changes are observed for the
peppermint-related VOCs such as α-pinene, β-pinene, although high variability is observed for peak data points.

As seen in Figure 4, as few as three timepoints can be sufficient to observe differences in the levels of breath metabolites following administration of an EVOC Probe, with samples collected to establish baseline, and at set times (which can vary based on the individual EVOC Probe) to measure peak levels and when washout will have substantially occurred. This profile, when compared with a broader population, can then be used to determine the relative metabolic response of that individual to the EVOC Probe.

Peppermint Boxplots 900

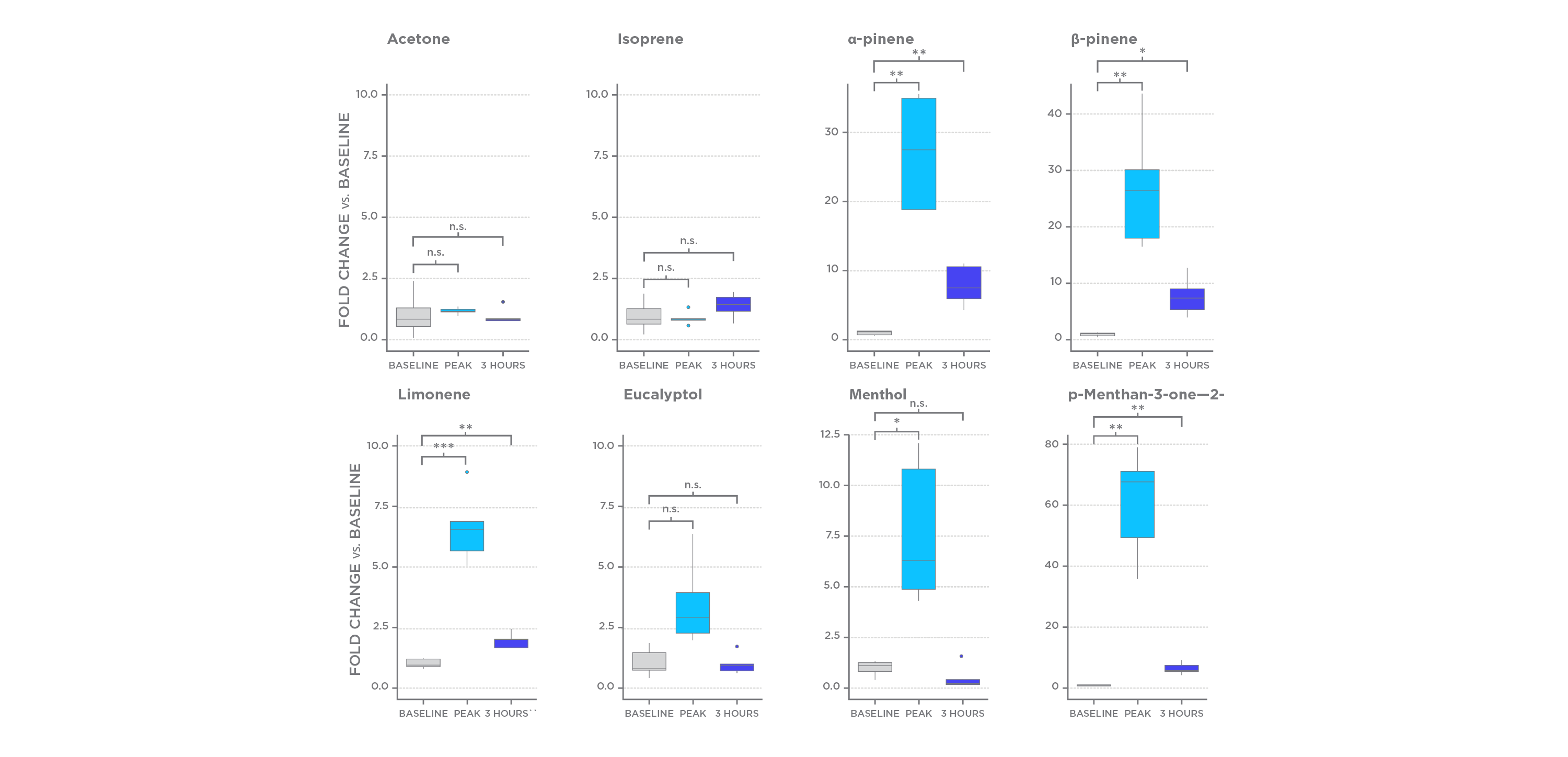

Figure 4. Longitudinal study repeating the washout experiment nine times over five weeks in a single individual. Breath samples from pre-ingestion control, peak (45 min after administration of EVOC Probe) and 3 hours after EVOC Probe were analyzed in each washout experiment. Two replicate VOC sample tubes were collected and analyzed at each time point. Fold changes in breath levels of acetone, isoprene and different terpenes compared with baseline are shown.

EVOC Probes as targeted metabolic probes in Breath Biopsy - On Demand Webinar

Watch the Talk

Compounds

Targeted Compounds

Owlstone Medical have developed the capability to quantify VOCs in breath related to our EVOC Probes. The following EVOC Probes are currently available in the kit. Additional Probes are under development and will be added to the Kit when validated.

EVOC Probe Development Table - 3 Compounds
Table 1. EVOC Probes and the enzymes that metabolize them

Owlstone Medical’s analytical protocols guarantee repeatability and reproducibility across the full analytical process from breath collection, to transport and sample analysis. Advanced analytical capability also enables Owlstone Medical to discriminate between closely related compounds at very low concentrations.

Kit Contents

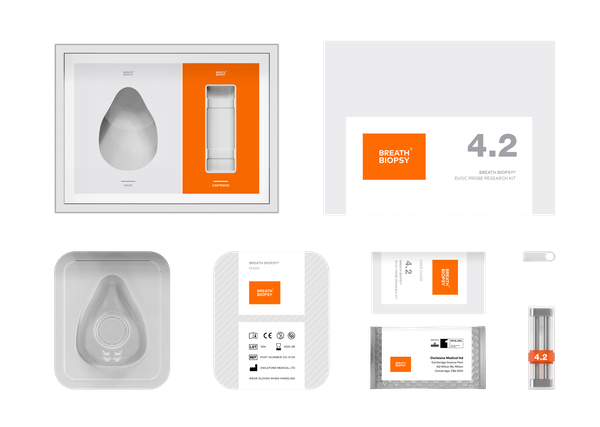

4.2 EVOC Probe Research Kit contains:

  • One Breath Biopsy Cartridge
    Four conditioned VOC sample tubes
    QC checked
    Capped and ready to use
  • One disposable Breath Biopsy Mask
    Conditioned
    Integral filter
    QC checked
    Vacuum sealed and ready to use
  • Encrypted USB drive
    For transfer of patient metadata
  • Return envelope
    Breath Biopsy Cartridges are returned to Owlstone Medical for analysis
  • Targeted quantitative analysis of EVOC chemicals and their metabolites performed in Owlstone Medical’s Breath Biopsy Laboratory using the Breath Biopsy platform
    Performed in Owlstone Medical's Breath Biopsy Services Laboratory using the Breath Biopsy analytical platform including GC-MS
    Standard data analysis and reporting

EVOC Probes Applications - Science and Technology

Learn More
